Model No.: 364,316,304L,316L

Means of Transport: BY SEA OR BY AIR

Wire Materials: Type 304, Type 304 L, Type 316 and Type 316 L. Characteristics: wear-proof, heat-resisting, acid-resisting and corrosion resisting.

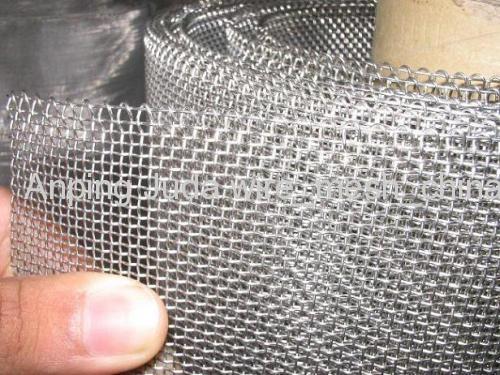

Stainless steel wire mesh

Material: Stainless steel wire. Our factory produces a complete range of first-class stainless steel woven wire mesh and wire cloth products, including Square Opening Series Stainless Steel Wire Mesh (from 1mesh to 500mesh) and Cloth.

Types of weaves:

(1) Stainless Steel Wire Mesh, Plain Weave:
The Plain Weave is the most commonly used and simplest wire cloth weave. Each warp wire (wire running-parallel to length of cloth) passes alternately over and under the wires running traversely through the cloth (fill or shoot wires) at 90 degree angles. It has an extremely wide range of applications.

(2) Stainless Steel Wire Mesh, Twilled Weave:
This weave allows the use of proportionately heavier wires in a particular mesh count (number of openings per lineal inch) than is possible in plain weave. This cloth has a wide application capable of supporting greater loads and finer filtrations.

Use: Stainless steel wire mesh and wire cloth is extensively used in mining, chemical industry, food industry and pharmaceutical industry, due to its excellent property of wear-resistance, heat-resistance, acid-resistance and corrosion resistance
